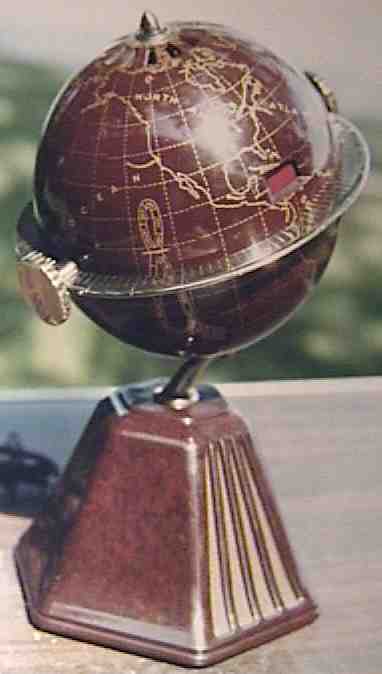

Colonial Globe
 Colonial Model 700 "New World" Globe Radio
Made in 1933 by Colonial Radio Corporation.

A great article about this model radio is at Phil's Old Radios.

PDF Schematic, courtesy of Nostalgia Air.

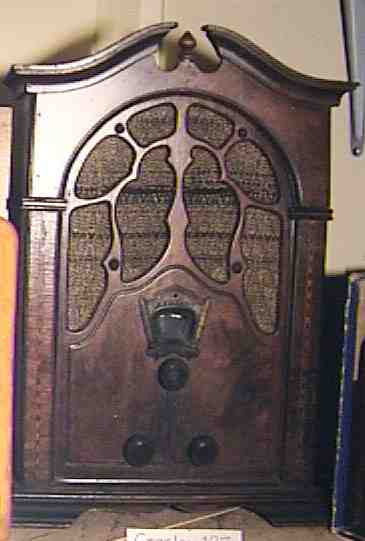

Crosley 187
 Crosley model 187

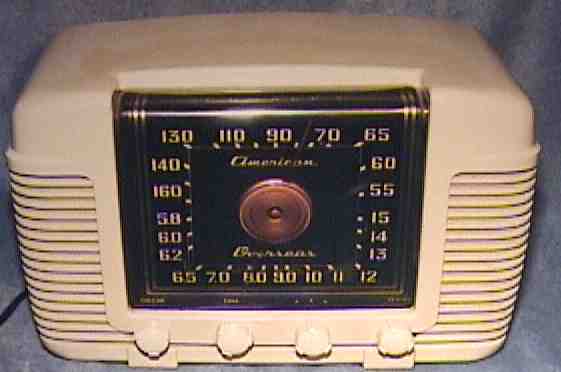

Crosley 66A
 Crosley model 66A

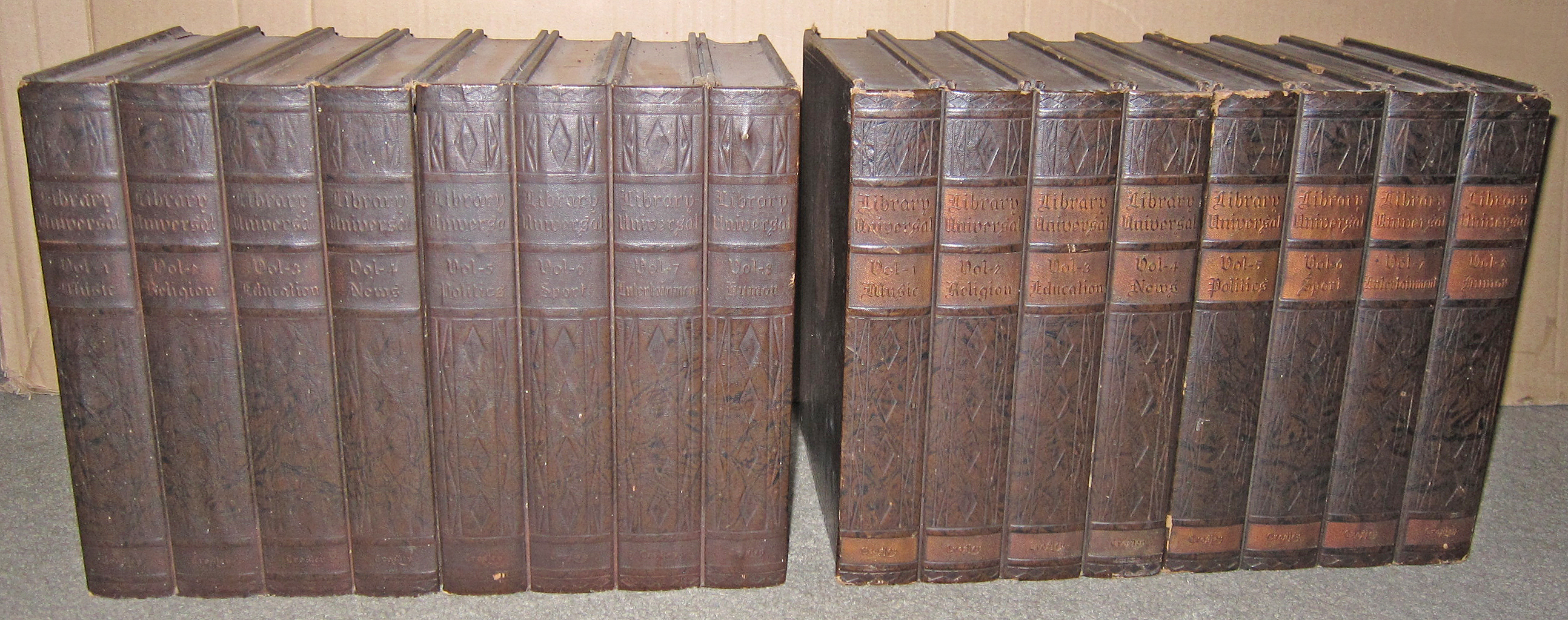

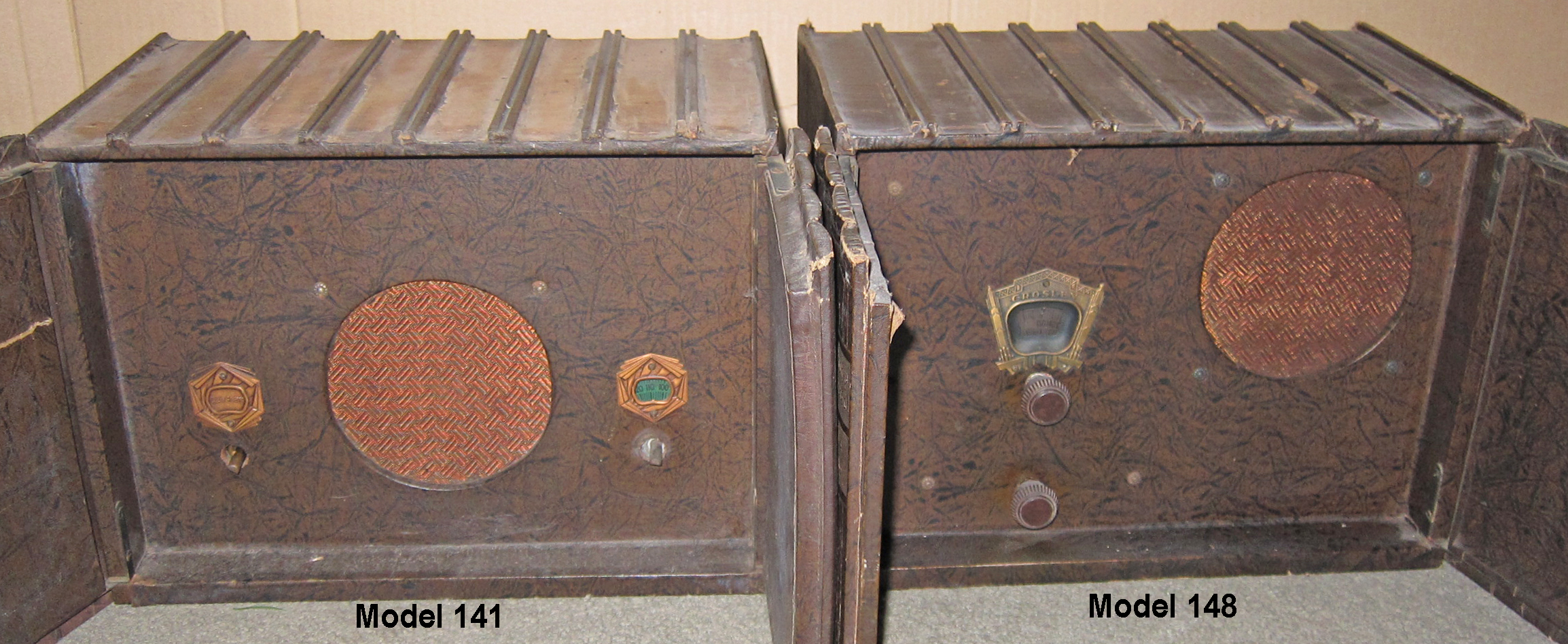

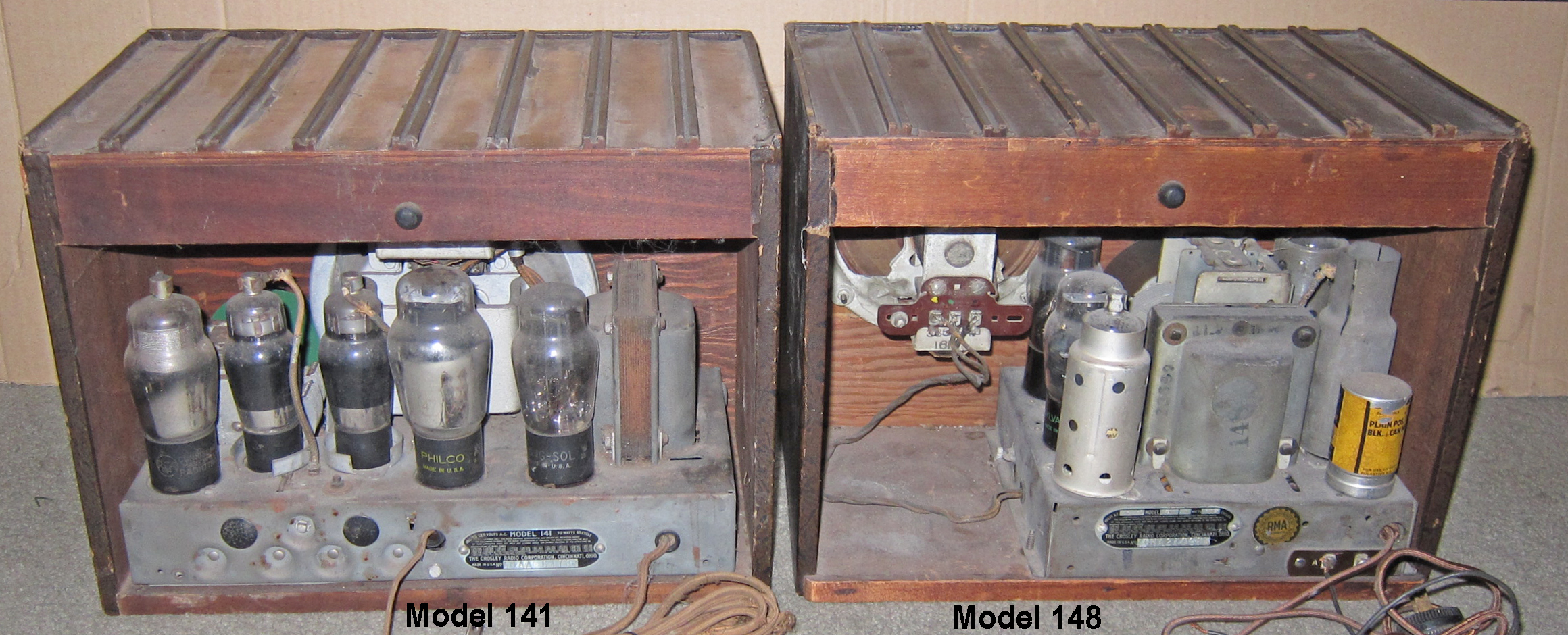

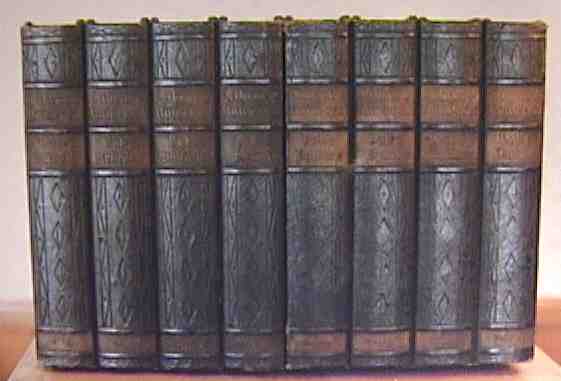

Crosley Bookcase Radio

Crosley Bookcase

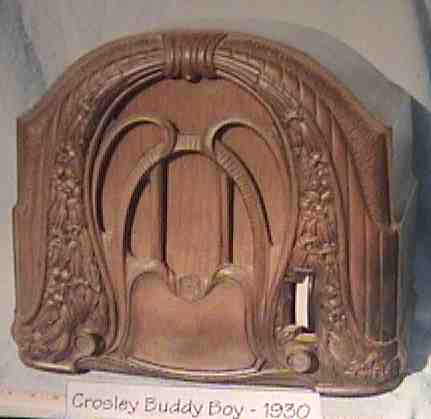

Crosley Buddy Boy
 Crosley Buddy Boy

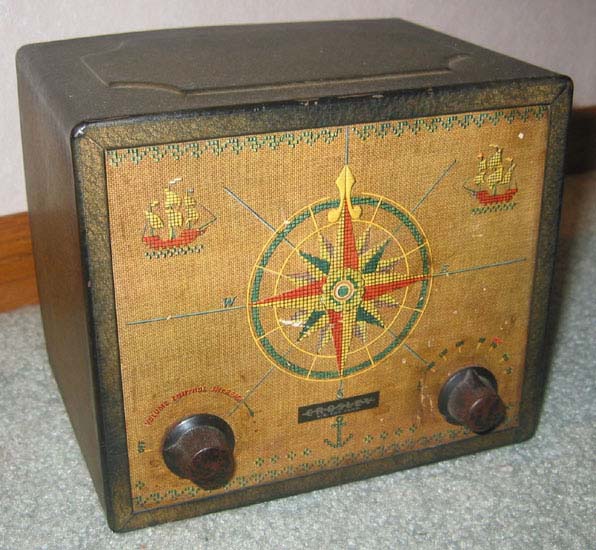

Crosley Sampler
 Crosley Sampler Model 2C1
1934 2-tube AC/DC radio manufactured by Crosley in Cinncinati Ohio. The 12A7 and 6F7 tube filaments are in series with a line cord resistor. The cabinet is metal. The decorative fiber board on the radio front is also the speaker, and is connected to the speaker driver by a stiff wire.

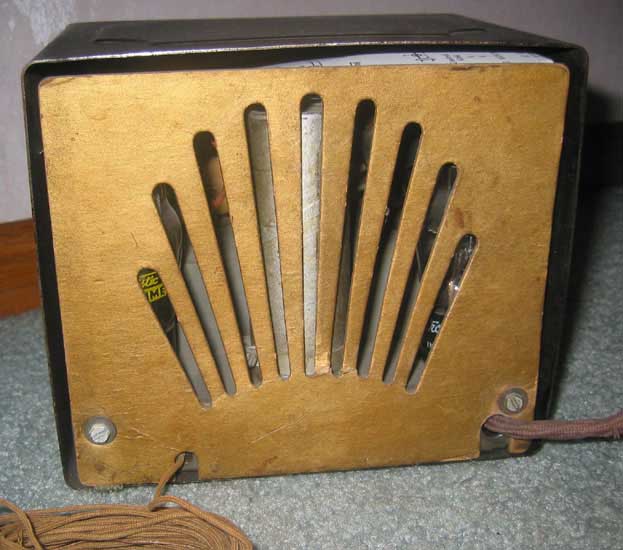

Back View
Inside View

PDF Schematic, courtesy of Nostalgia Air.
.
